PCBA Consumer Electronics Smart Humidifier Water Distiller SMT Printed Circuit Board Assembly

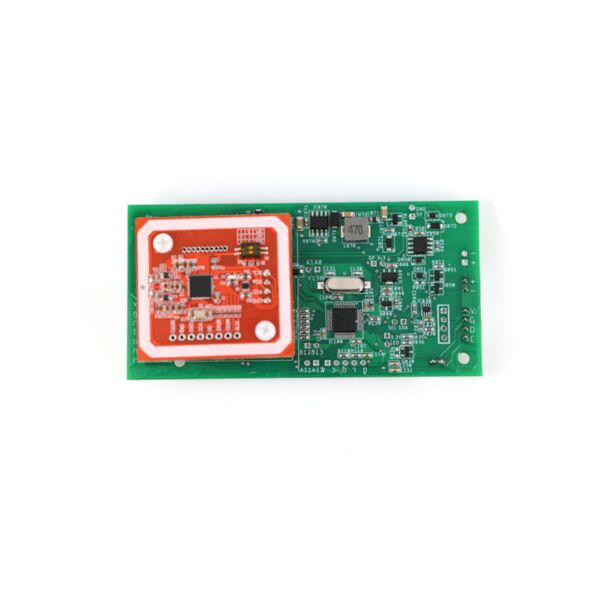

PCBA  Images

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

PCBA  Applications

• Home Respiratory Health: Provides purified, mineral-free mist for allergy and asthma relief.

• Baby Nursery Use: Delivers sterile, distilled vapor safe for infant respiratory systems.

• Medical and Clinical Settings: Supplies pure humidity for patient rooms and treatment areas.

• Kitchen and Cooking Prep: Produces distilled water for recipes requiring mineral-free liquid.

• Office and Workspace: Maintains comfortable humidity while eliminating white dust from minerals.

• Plant and Greenhouse Care: Supplies pure moisture sensitive to mineral buildup in soil.

• Travel and Portable Use: Offers distilled water on demand in areas with hard tap water.

PCBA Features

1. Heating Element Driver: Controls distillation boiler for water purification cycle.

2. Water Level Sensor: Monitors reservoir and boiler levels for safe operation.

3. Temperature Sensor: Prevents overheating during distillation and humidification.

4. Ultrasonic Transducer Driver: Powers mist generation with adjustable output intensity.

5. Condensation Coil Control: Manages cooling system for steam-to-water distillation.

6. Mineral Separation Chamber: Routes distilled water to humidifier while discarding waste.

7. Auto Shutoff Protection: Cuts power when water is depleted or unit overheats.

8. User Interface Controller: Drives display and buttons for mode selection and settings.

9. Humidity Sensor: Measures ambient moisture for automatic regulation.

10. Connectivity Module: Wi-Fi or Bluetooth for remote control and smart home integration.

11. Power Management: Handles high-power heating element and low-power control circuits safely.
